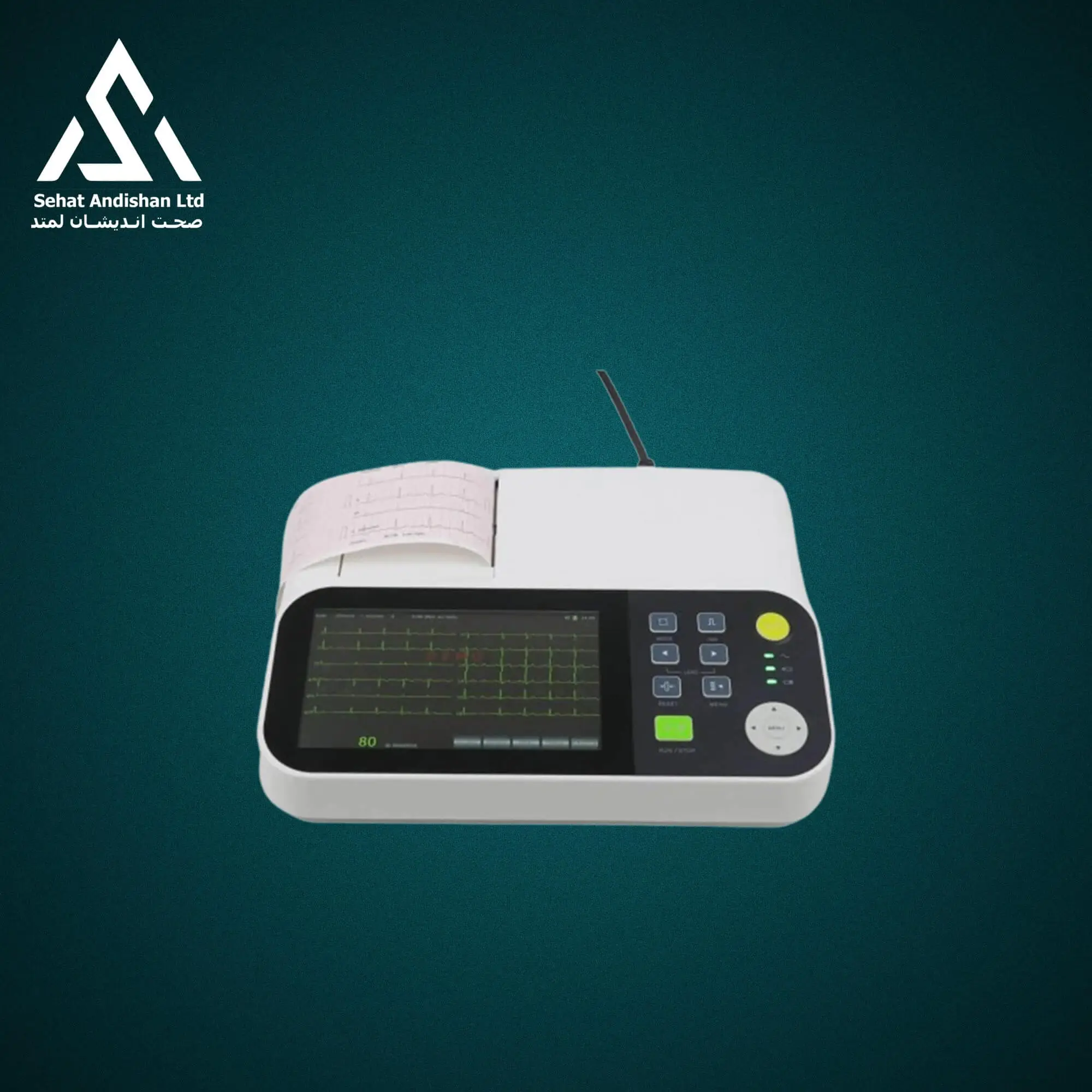

ECG 3 Channels
ECG 3 Channels

ECG Collection

  • Input Circuit: Floating design with defibrillator protection

  • Voltage Tolerance: ±500 mV

  • Time Constant: ≥3.2 seconds

  • Frequency Response: 0.05 Hz ~ 165 Hz

  • Input Impedance: 50 MΩ (at 10 Hz)

  • Input Circuit Current: ≤50 nA

  • Patient Auxiliary Current: <10 μA (220V–240V / 50Hz)

  • CMRR (Common Mode Rejection Ratio): >60 dB

  • A/D Resolution: 12 bits

  • Acquisition Mode: Simultaneous 12-lead ECG capture

Working Modes

  • Manual Mode

  • Automatic Mode



Display & Operation

  • Screen: 7” vibrant display

  • Operation: Keypad input with optional touchscreen functionality

Battery

  • Type: Built-in rechargeable Lithium-ion

  • Capacity: 12V / 2000 mA

Environmental Requirements

Transportation & Storage

  • Temperature: -20°C ~ 55°C

  • Humidity: 25% ~ 95% RH

  • Atmospheric Pressure: 70 kPa ~ 106 kPa

Operational Environment

  • Temperature: 5°C ~ 40°C
