3001B
3001B

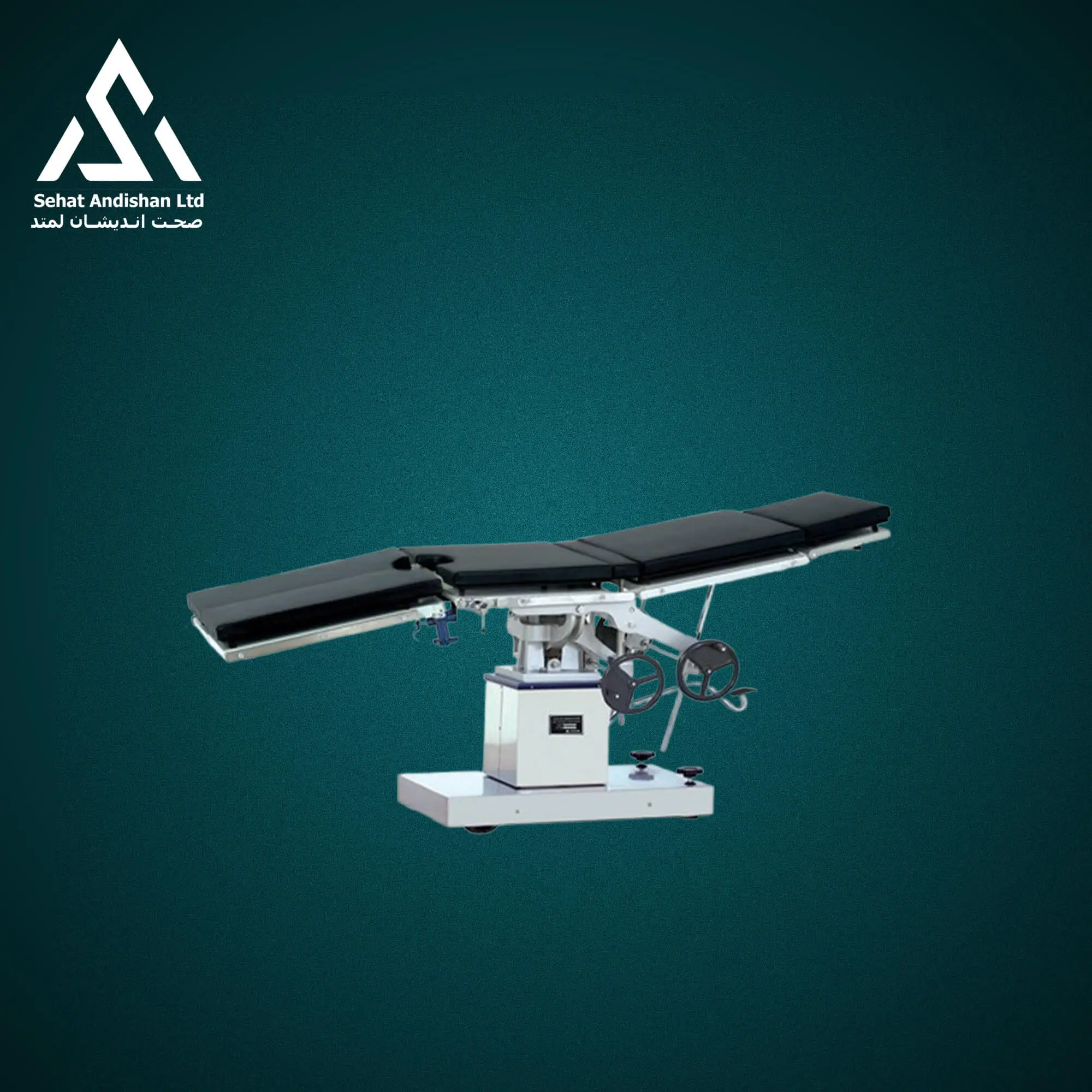

This versatile surgical operating table is engineered to accommodate a wide range of surgical procedures, including head, neck, and orthopedic operations with the support of a traction frame. With dimensions of (2100±50mm) × (480±20mm) × (750–950±50mm), it offers adjustable height and precise positioning to enhance surgical efficiency and patient comfort. Key features include independent head, back, and leg board adjustments, Trendelenburg and reverse-Trendelenburg capabilities, lateral tilting, and a waist board lift up to 120mm. The leg boards are both separable and detachable for added flexibility. The table's double-platform design supports X-ray cassette placement, while the stainless steel base and hydraulic elevation system ensure durability and smooth operation. Supplied with essential accessories and supporting a load capacity of up to 180kg, this table is a reliable solution for modern surgical environments.



Size: (2100±50mm) (480±20mm) (750-950)±50mm
Application: For various surgical operations (head, neck, etc.) and orthopedic operations with a traction frame
Functions:

  1. HI-LOW: (750-950)±50mm

  2. Head board folds upward ≥45° and downward ≥90°

  3. Back board folds upward ≥75° and downward ≥18°

  4. Leg board folds downward ≥90° and outward ≥90°

  5. Trendelenburg ≥20° and Reverse-Trendelenburg ≥30°

  6. Left and right tilting angle ≥18°

  7. Waist board lifting ≥120mm

  8. Legs can be separated and are detachable

  9. Double platform suitable for holding X-ray cassette
    Structure: Double-bed design with controls on both sides for multiple positions
    Chassis: Stainless steel base
    Accessories: 1 pair of armrests, 1 pair of waist grab holders, 1 pair of shoulder supporters, 1 pair of leg holders, 1 anesthesia screen, Imported Y-style hermetic ring, Hydraulic oil pump for elevation
    Loading capacity: 180kg
    Packing: 126×78×105cm = 1.03m³, Gross weight: 280kg
