3001 D
3001 D

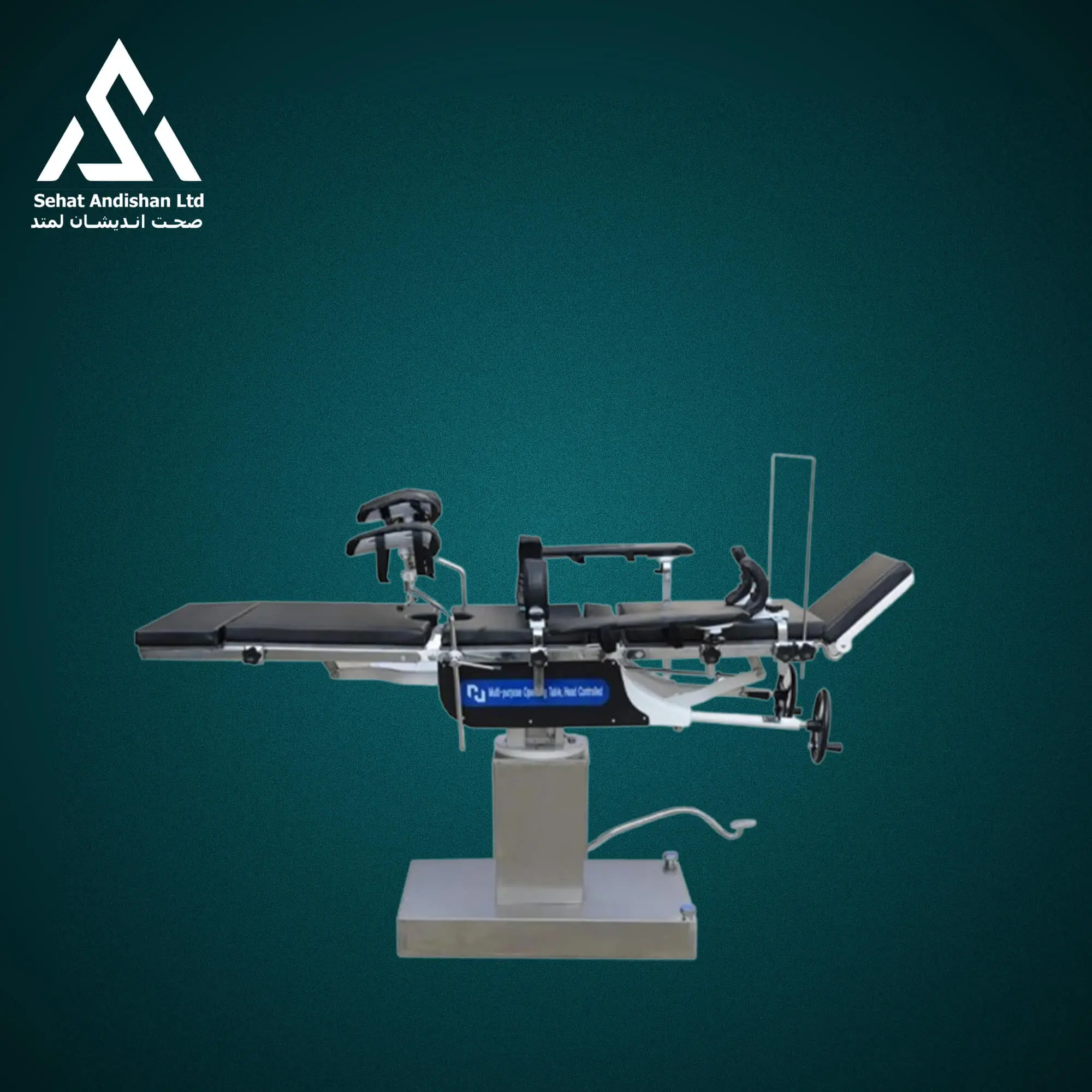

This versatile hydraulic operating table is designed for a wide range of surgical procedures, including those involving the head, neck, thorax, abdomen, perineum, and extremities. It is also suitable for gynecological, ENT (oto-rhino-laryngological), and orthopedic surgeries. Operated via a reliable oil pump system, the table can be raised or lowered smoothly, with positioning controls accessible from both sides for ease of use during procedures.

Recognized for its superior design and performance, this table has been awarded the First Prize in China and holds the "High Quality Product" certification from the State Pharmaceutical Administration Department.

Overall Length: 2100mm
Width: 480mm
Head Section: 280×320mm
Back Section: 500×480mm
Seat Section: 450×480mm
Leg Section: 450×480mm
Foot Section: 200×533mm
Kidney Bridge: 85×415mm
Max Height: 920mm
Min Height: 720mm
Safe Working Load: 150kg

Standard Accessories:
Anaesthetic Screen ×1
Body Support (Large ×1, Small ×1)
Shoulder Support ×2
Arm Rest ×2
Knee Crutch ×2
Cushion ×1
