HDS 3000
HDS 3000

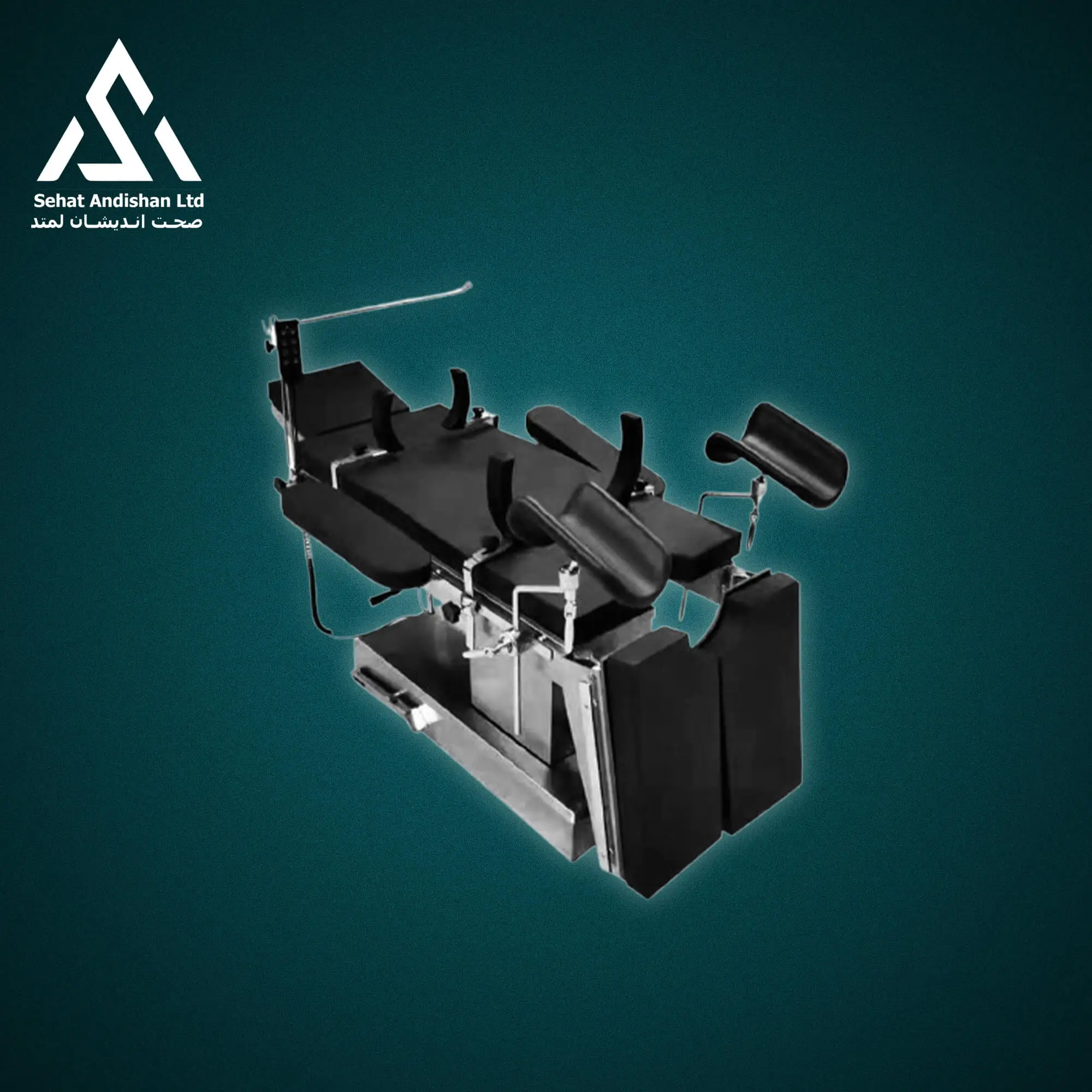

The Electric Comprehensive Operating Table is designed for a wide range of surgical procedures, including thoracic, abdominal, brain, ophthalmology, ENT, obstetrics, gynecology, urology, and orthopedics. It is compatible with C-arm X-ray machines, allowing for seamless radiographic examinations.

Key Features & Advantages

  1. Electric Positioning System:

    • Table height adjustment, forward/backward tilt, left/right tilt, translation, and backplate movement are all controlled by button-operated electric push rods for smooth and precise adjustments.

  2. Longitudinal Movement:

    • The table can move longitudinally, making it compatible with C-arm imaging for X-ray examinations and surgical procedures.

  3. Premium Construction:

    • The countertop is made of high-quality acrylic, ensuring durability.

    • The mattress is made of slow-rebound memory foam, which evenly distributes pressure, prevents bedsores, and offers corrosion resistance, acid/alkali resistance, breathability, and easy cleaning. It conforms to the patient's body temperature for enhanced comfort.

  4. Flexible Leg Plate:

    • The leg plate is detachable, manually rotatable, abductable, and foldable, making it highly convenient for urological surgeries.

  5. Modular Head & Leg Plates:

    • Both head and leg plates are detachable, allowing for more flexible operation space.

  6. User-Friendly Handheld Control:

    • The 24V DC handheld controller ensures easy operation, safety, and reliability.

  7. Durable & Hygienic Build:

    • Constructed from medical-grade 304 stainless steel with a special matte finish, making it modern, durable, and easy to clean.

  8. Reinforced Base:

    • The high-strength stainless steel bottom cover provides strong pressure resistance, corrosion protection, and effortless maintenance.

  9. Movable & Lockable Base:

    • The base is equipped with wheels for smooth mobility and a locking mechanism for stability.

  10. Built-in Lumbar Bridge:

  • Supports specialized procedures such as biliary and kidney surgeries.

  1. Comprehensive Motion Capabilities:

  • Electric controls manage height, tilt, and translation (via controller and electric push rods).

  • Gas spring system controls head and leg plate movements.

  • Mechanical adjustment is used for lumbar bridge elevation.

  1. Advanced Power System:

  • The table is powered by an external 220V AC supply, which is converted into 24V DC to drive the motor efficiently.
