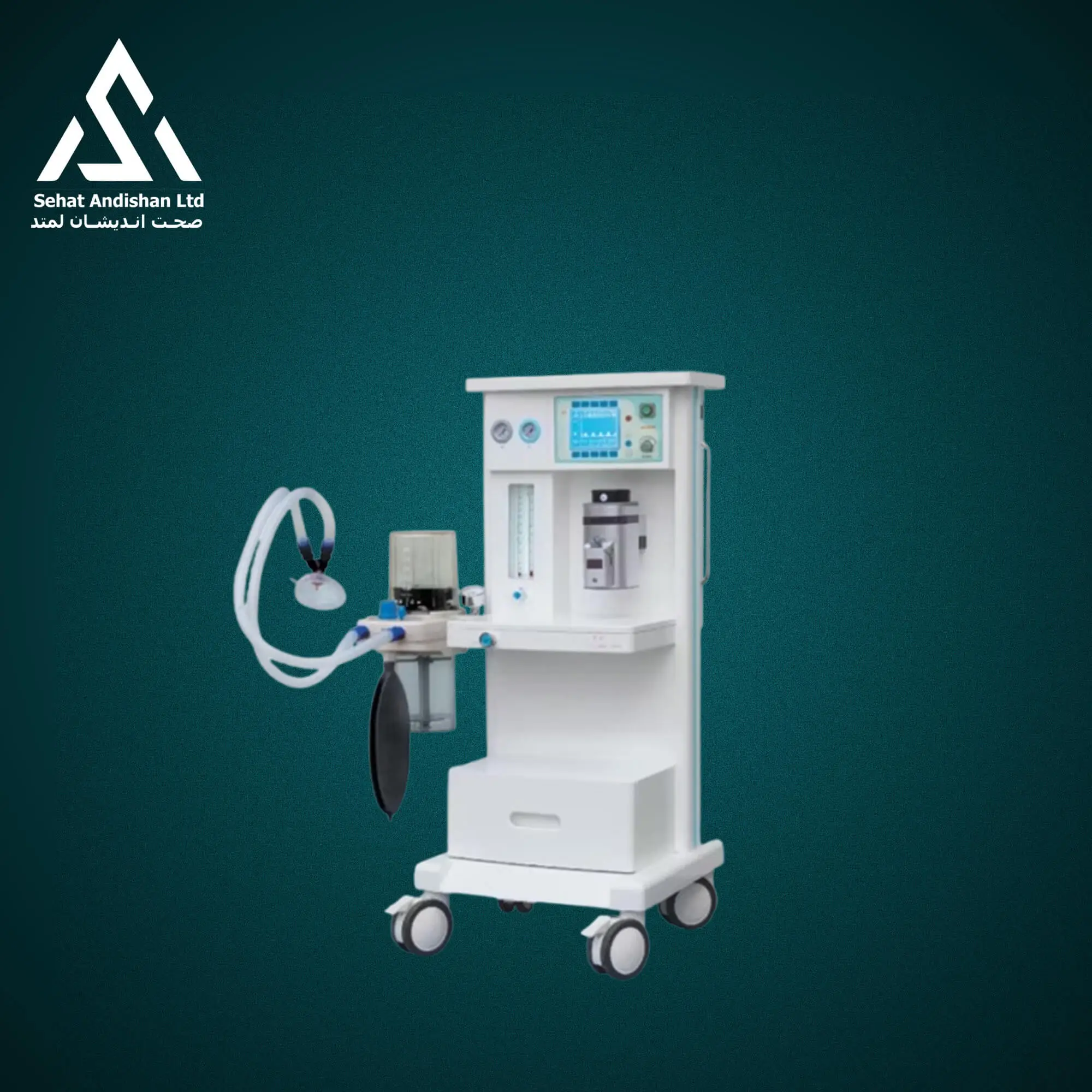

One Vaporizer

The One Vaporizer Anesthesia Machine is a compact and efficient medical device designed to deliver precise and controlled anesthesia during surgical procedures. Combining advanced vaporizer technology with reliable gas delivery systems, it ensures patient safety and comfort throughout anesthesia administration. Its user-friendly interface and robust design make it suitable for various clinical settings, from routine surgeries to complex operations, providing anesthesiologists with accurate control over anesthetic concentration and flow.

Main body High-strength engineering plastic rack, light,
Beautiful and corrosion resistant
Scope of application adult, child
Gas source O2: 0.27~0.55MPa
Flow meter O2: 0.1~2L/min 2.5~10L/min
Flow rate of rapid oxygen supply 25~75L/min
Low oxygen pressure alarm There will be sound alarm when the oxygen pressure < 0.2MPa
Vaporizer it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%.
Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer.
Respiratory circuit working mode: All-close, semi-close, semi-open
Releasing pressure: 0.5~7 kPa
Respiratory bellows bellows for adults, bellows for children
Tidal volume range: 0~1500 ml
