2 Films
2 Films

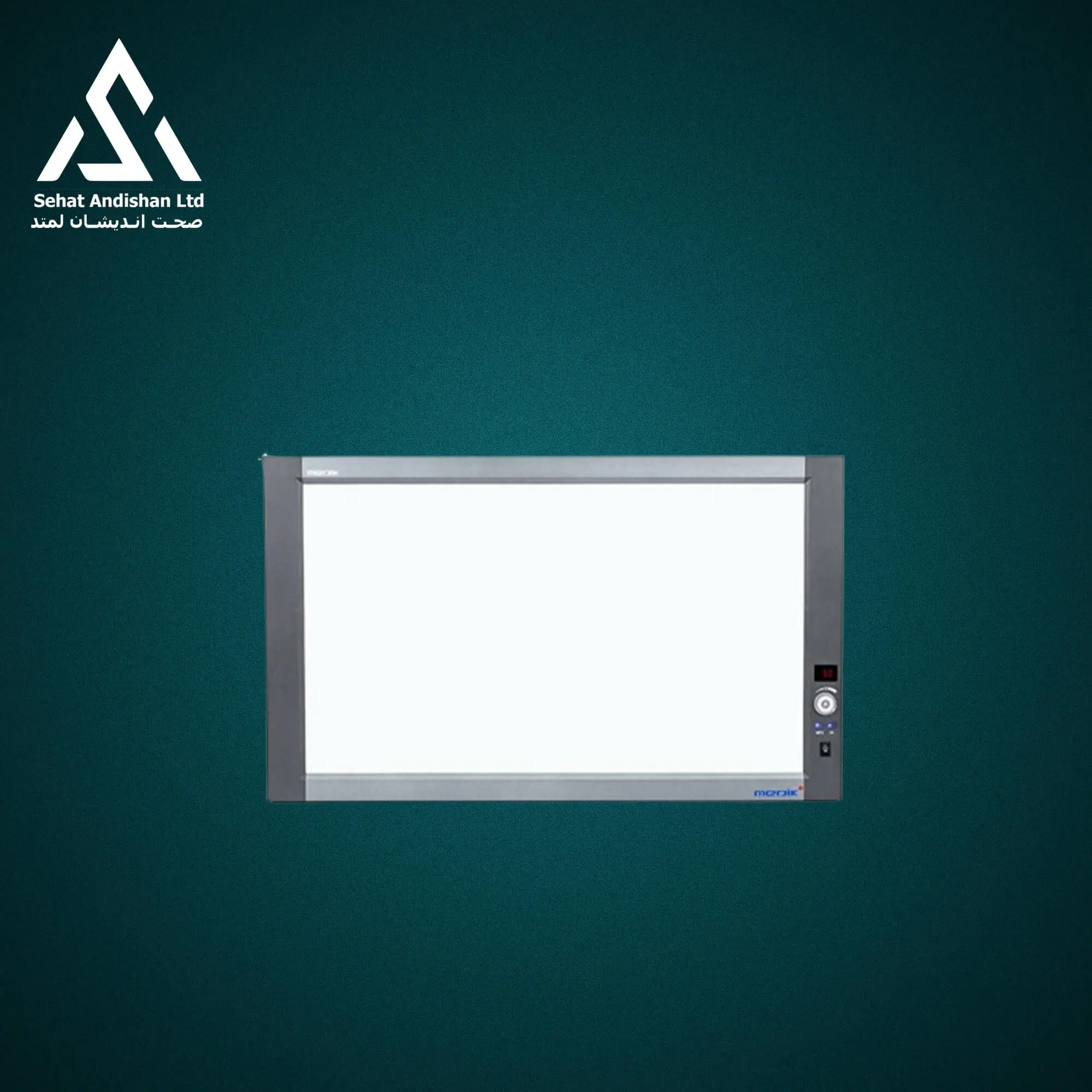

This sleek, modern viewer offers optimal size and multi-image display—ideal for reviewing patient history and monitoring recovery.

Key Features

  • PWM Dimming: Brightness adjustable from 0–4500 cd/m² via knob

  • Auto Sensor Lighting: Light turns on/off when film is inserted/removed

  • Acrylic Diffuse Plate: 4mm frosted acrylic—lightweight, tough, and elegant

  • Slim Design: 25mm frame; wall-mountable or bracket-supported

  • Silicone Clip: Securely holds various film types including mammography

Tech Specs

  • Model: Double YA-NS02

  • Size: 838×506×25 mm (External), 720×425 mm (Viewing)

  • Power: 60W, AC90–240V, 50/60Hz

  • LED: 144 SMD LEDs/panel, 8000K, 100,000h lifespan

  • Brightness: 0–100 stepless levels

  • Uniformity: ≥90%

  • Environment: For rooms ≤100 lux illuminance
