Two Vaporizer

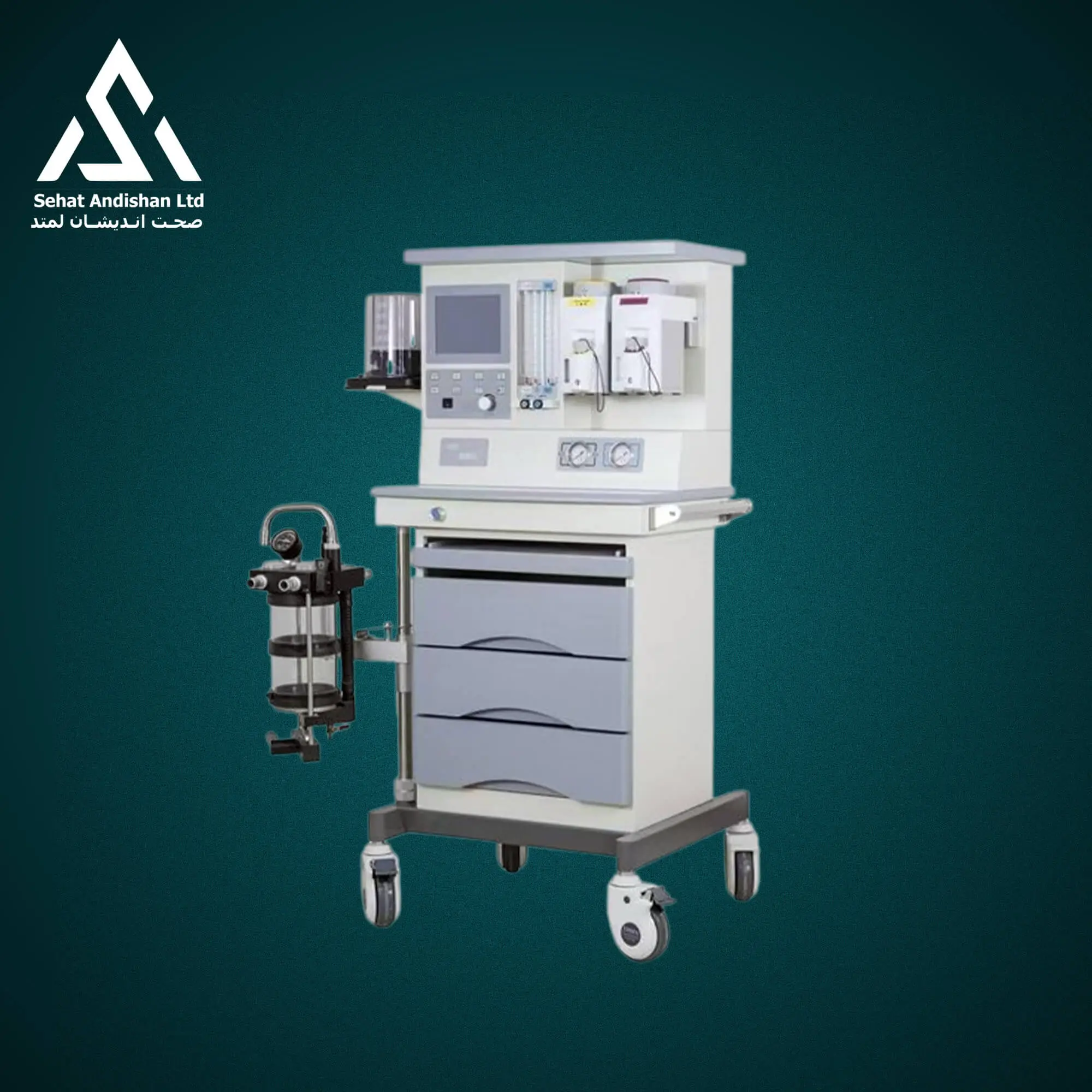

The anesthesia machine operates in closed, semi-closed, and semi-open systems, making it suitable for both adult and pediatric patients. It features comprehensive alarm functions including upper and lower airway pressure, tidal volume alarms, oxygen deficiency, apnea detection, and power failure alerts to ensure patient safety. The device supports oxygen and nitrous oxide pressures between 0.3 and 0.5 MPa and runs on a 220V ±10% power supply with a frequency of 50Hz ±1%. The oxygen flush flow rate is adjustable from 35 to 75 L/min. Equipped with a dual bellows ventilation system, it monitors tidal volume, respiratory rate, I/E ratio, peak airway pressure, and airway status. It offers multiple ventilation modes such as IPPV, SIGH, SIMV, PEEP (+0.5 to +2 kPa), and SIPPV. Ventilation settings are highly adjustable, with respiratory rates ranging from 4 to 60 breaths per minute, tidal volumes from 30 to 1500 mL, and an I/E ratio adjustable between 3:1 and 1:4, allowing for precise and flexible respiratory support during anesthesia.
