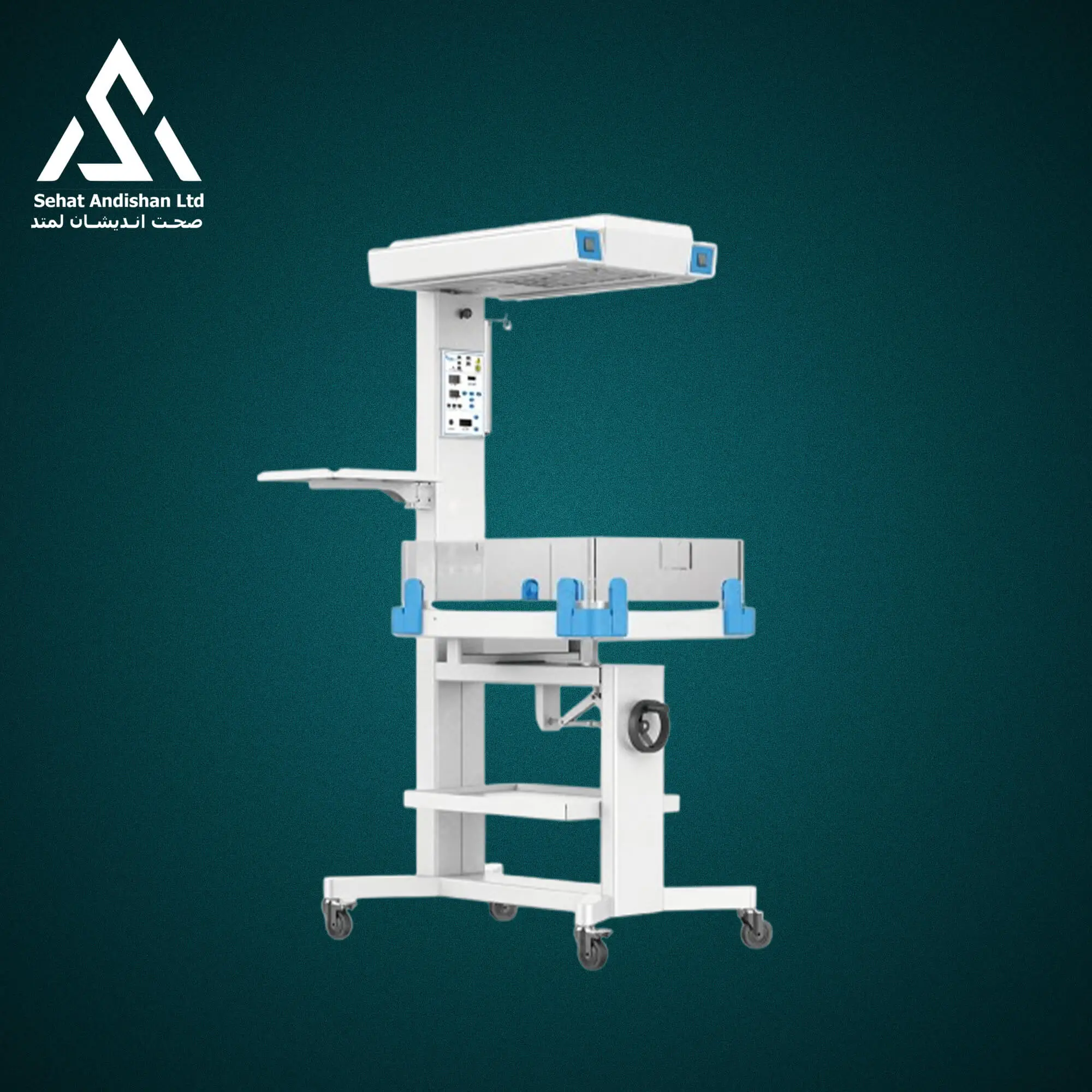

HNT-800A

Features

• Servo Temperature Control: Displays set temp, skin temp, and heat power rate

• Infrared Heating: Anti-blast quartz tube with uniform heat distribution

• Tilting Bed: ±10° adjustable with rotary radiant head (0–90° angle)

• X-ray Cassette Tray under the bed and high-intensity exam light

Specifications

• Temp Range: 20.0–37.0°C

• Sensor Accuracy: ≤0.3°C

• Mattress Temp Uniformity: ≤2.0°C

• Heating Time: ≤45 mins

• Heat Output: 0–100%

• Mattress Size: 68 × 54 cm

• Max Load: Mattress – 10 kg, Transfusion Pole – 2 kg, Shelf – 2 kg

Alarms

• Sensor Failure

• Over Temperature

• ±1°C Deviation

• Power Failure

• System Failure
