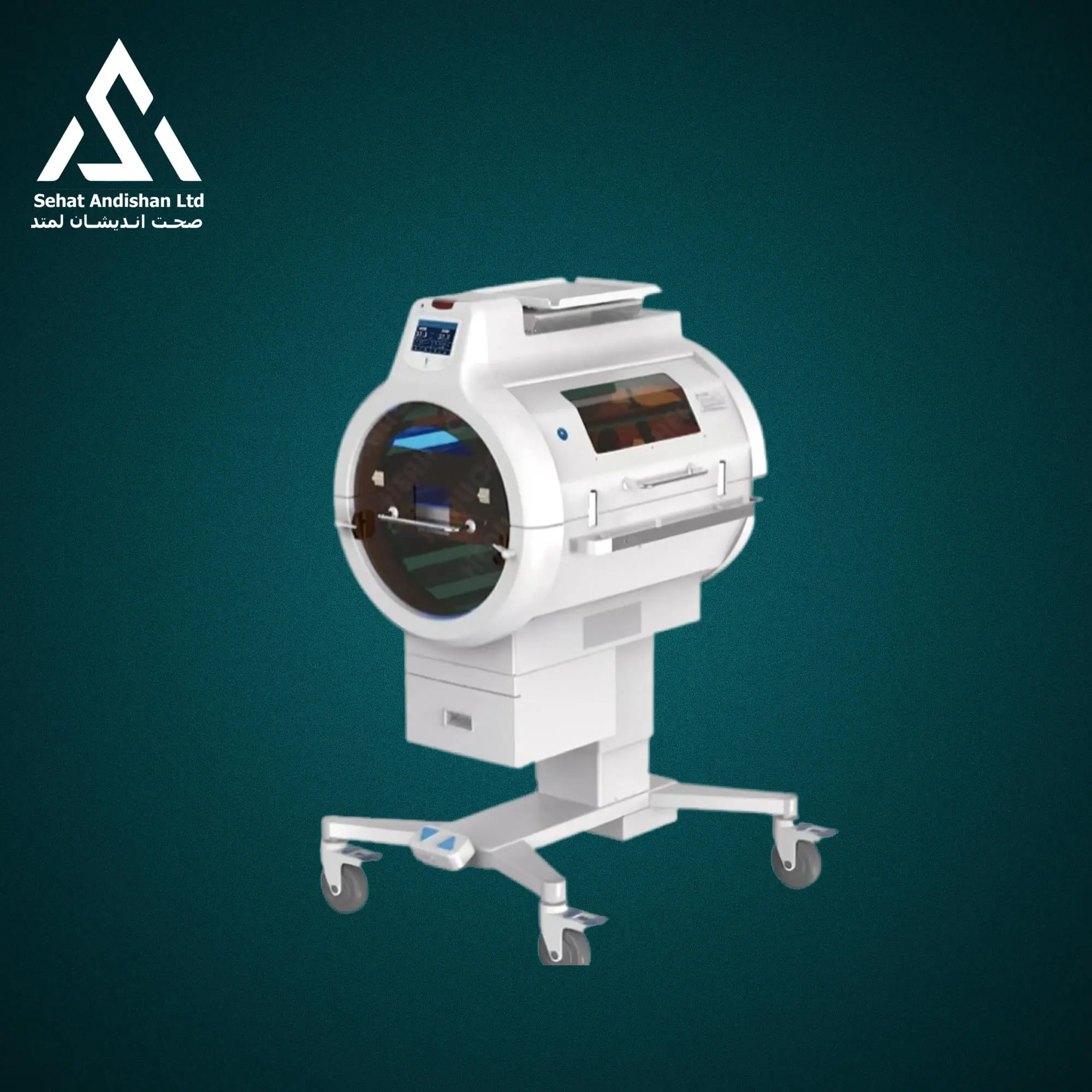

H-360
H-360

Features:

  1. Adopts 360° dimensional phototherapy features to ensure uniform irradiation, large irradiation area, and high-intensity treatment.

  2. Can effectively reduce the risk of blood transfusion of neonates, especially suitable for neonates suffering from severe jaundice.

  3. Soft and comfortable transparent mesh mattress prevents patients from bedsores and protects neonatal skin. Besides, the lower blue light can penetrate the bed adequately, increasing the curative effect.

  4. The treatment and hospitalization time can be massively shortened, making more beds available for urgent patients.

  • Display: 5.1-inch color touch LCD screen

  • Air temperature: 5 °C ~ 65°C

  • Skin temperature: 5 °C ~ 65°C

  • Working noise: ≤55db

  • Service life of light source: ≥50,000 hours

  • Light source: Blue LED

  • Irradiation intensity: 5.0mW/cm²

  • Peak wavelength: 455 ~ 460 nm

Alarm Function:

  • Upper limit for skin temperature alarm: 33°C ~ 39°C (adjustable)

  • Lower limit for skin temperature alarm: -3°C

  • Alarm for high air temperature

  • Notification for high air temperature

  • Alarm for low air temperature

  • Alarm for the end of treatment

  • Bed pull-out alarm: 10 min

  • Power failure alarm

Operating Environment:

  • Ambient temperature: +20°C ~ +28°C

  • Humidity: 30% ~ 75%

  • Storage ambient temperature: -40°C ~ +55°C

  • Storage humidity: ≤93%
